LDPC - Monitoring systems
Measuring range from 0.1 µm with max. 16 freely selectable particle size channels, networking of up to 32 sensors, various vacuum supply options, customized solutions for your cleanroom.
- Features
- Equipment
- Technical Data
- Compatible accessories
The particle counters in the LDPC series have been specially designed for a wide range of measuring tasks in cleanrooms. Thanks to the flexible connection via an RS-485 bus system, the LDPC series particle counters cover all common measuring methods and standards in the pharmaceutical industry, semiconductor production, biotechnology and many other sensitive production processes. Especially in the field of continuous particle monitoring, the LDPC system offers considerable advantages over conventional monitoring systems. The LDPC monitoring system can be integrated into the existing cleanroom with minimal effort. Each sensor can be equipped with either an internal or external vacuum pump. It is also possible to connect the sensors via the in-house vacuum network.
Areas of application
By using the LDPC monitoring system you realize the continuous monitoring of sensitive production processes in the:
- Pharmaceutical industry
- Biotechnology
- semiconductor technology
- Measuring range from 0.1 μm, with max. 16 freely selectable particle size channels.
- Up to 32 sensors can be networked
- Connection to the building management system (BMS) possible

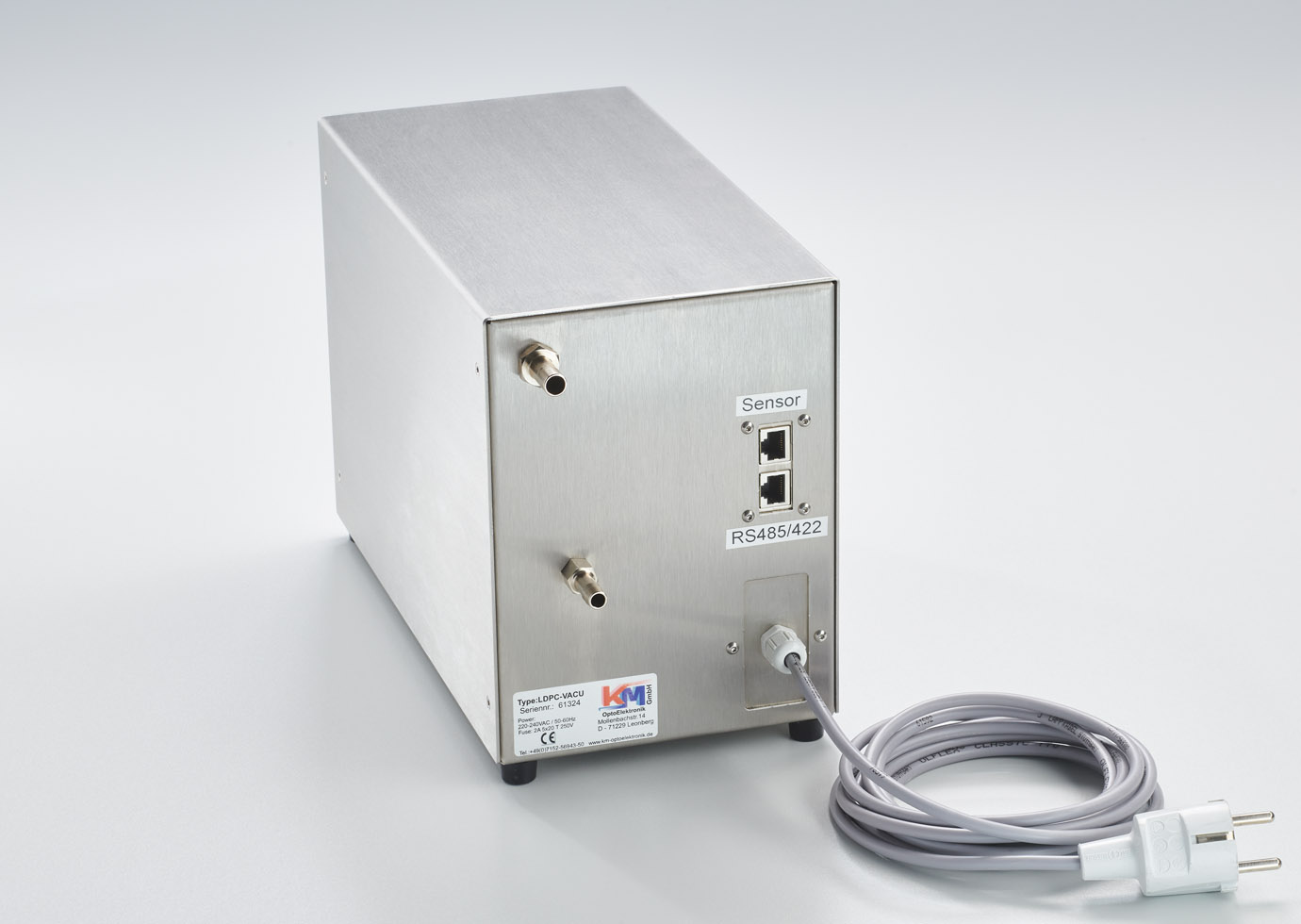

- Available with internal vacuum pump, external vacuum pump or connection to the in-house vacuum network Connection options for sensors for air velocity, differential pressure and temp/ RH
Additional functions
4 optional climate sensors can be connected per sensor for temperature and humidity, differential pressure and air velocity as well as alarm transmitters for limit value violations.
- Sensors for air velocity, differential pressure, temperature and relative humidity
- Alarm console with visual and acoustic display, with acknowledgement button
- Isokinetic nozzles with stand
- Installation accessories for integration into the cleanroom and much more, visit our accessories page to find the right accessories for your application
